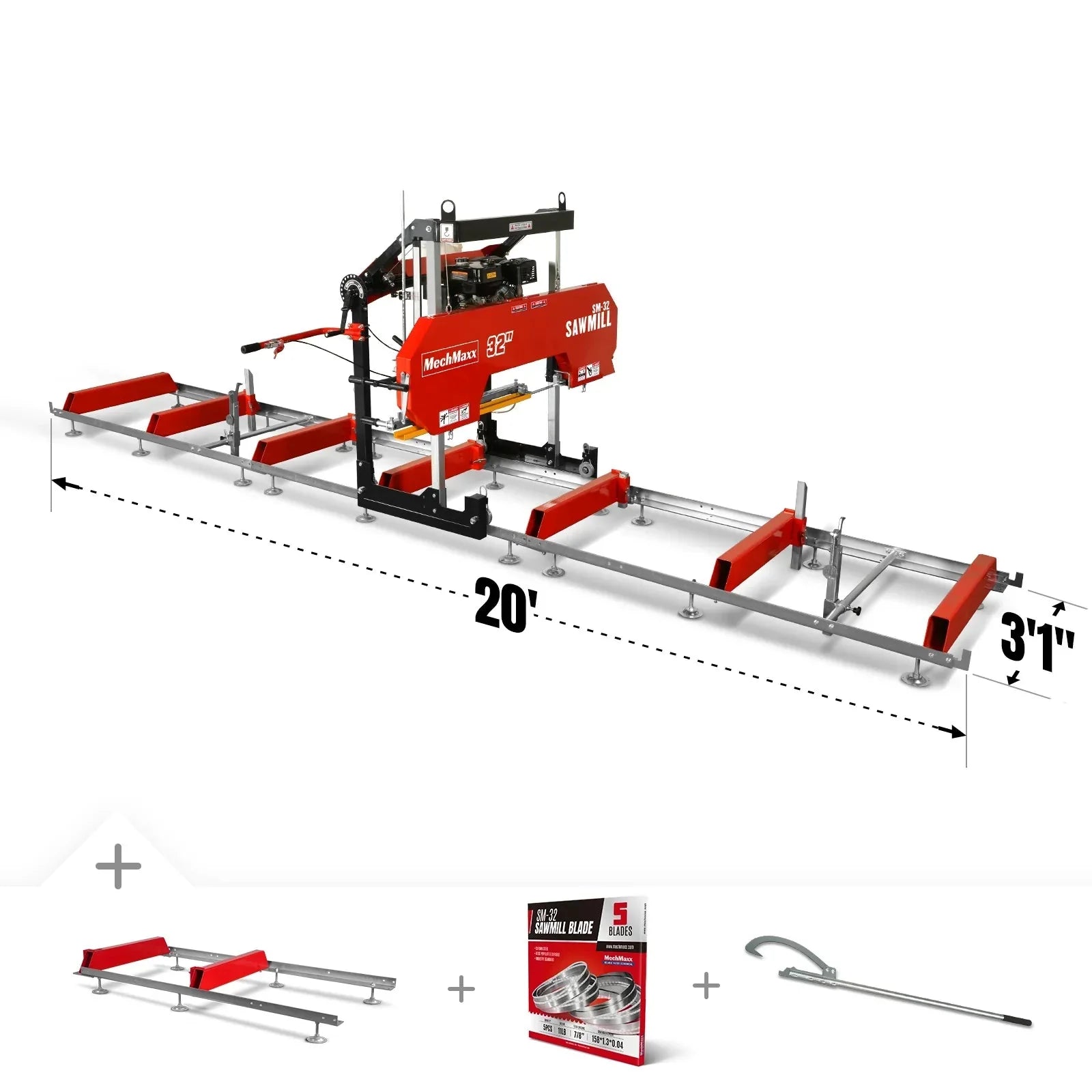

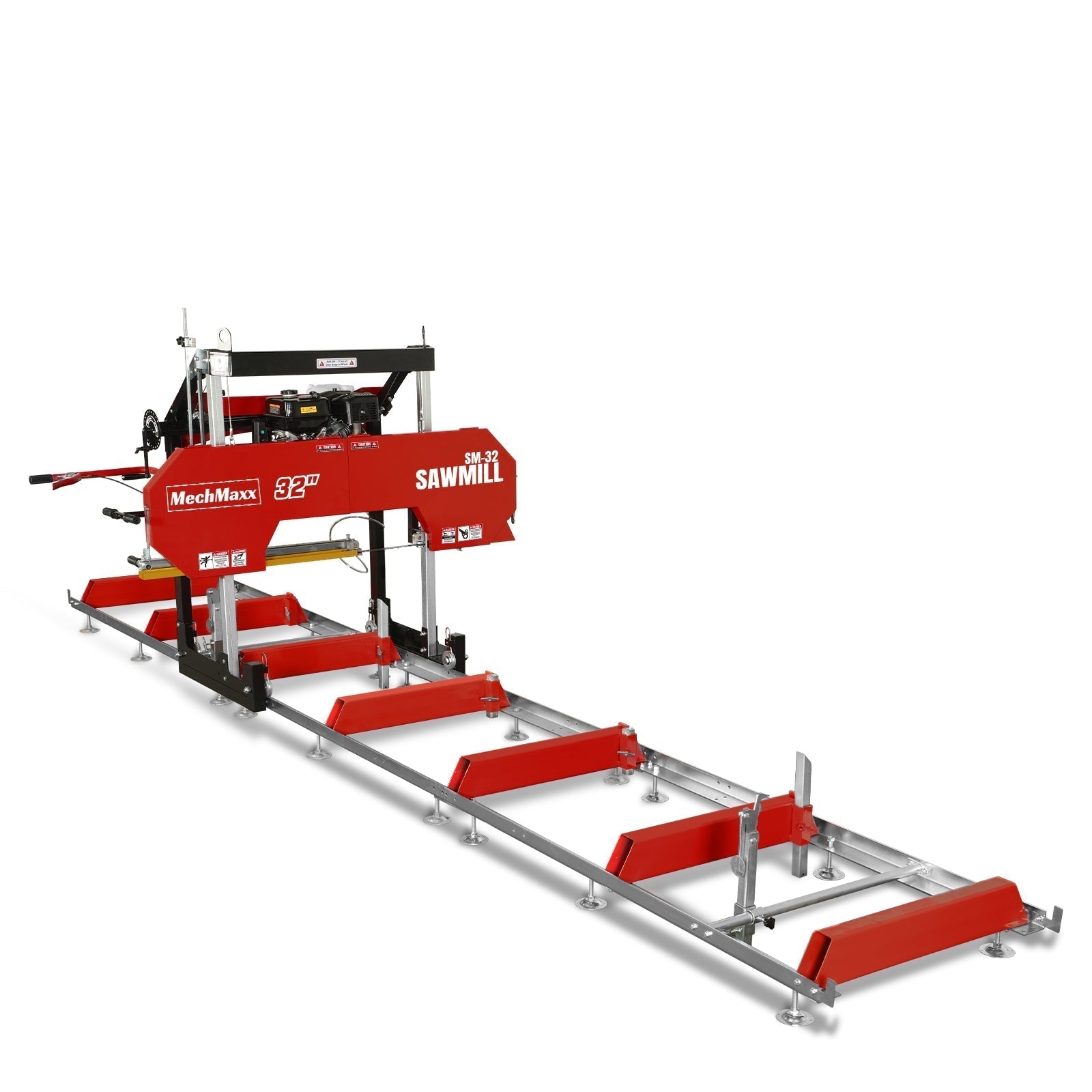

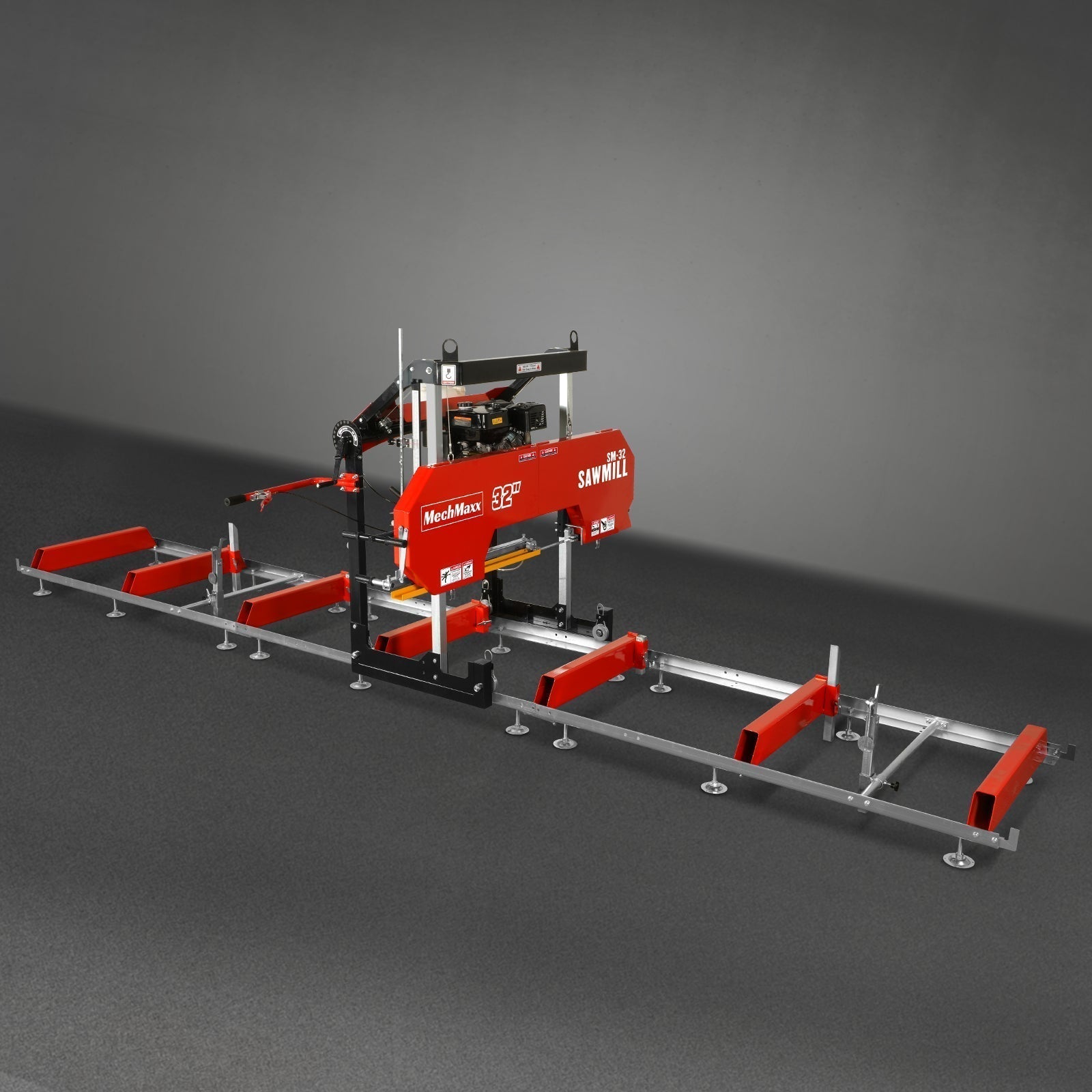

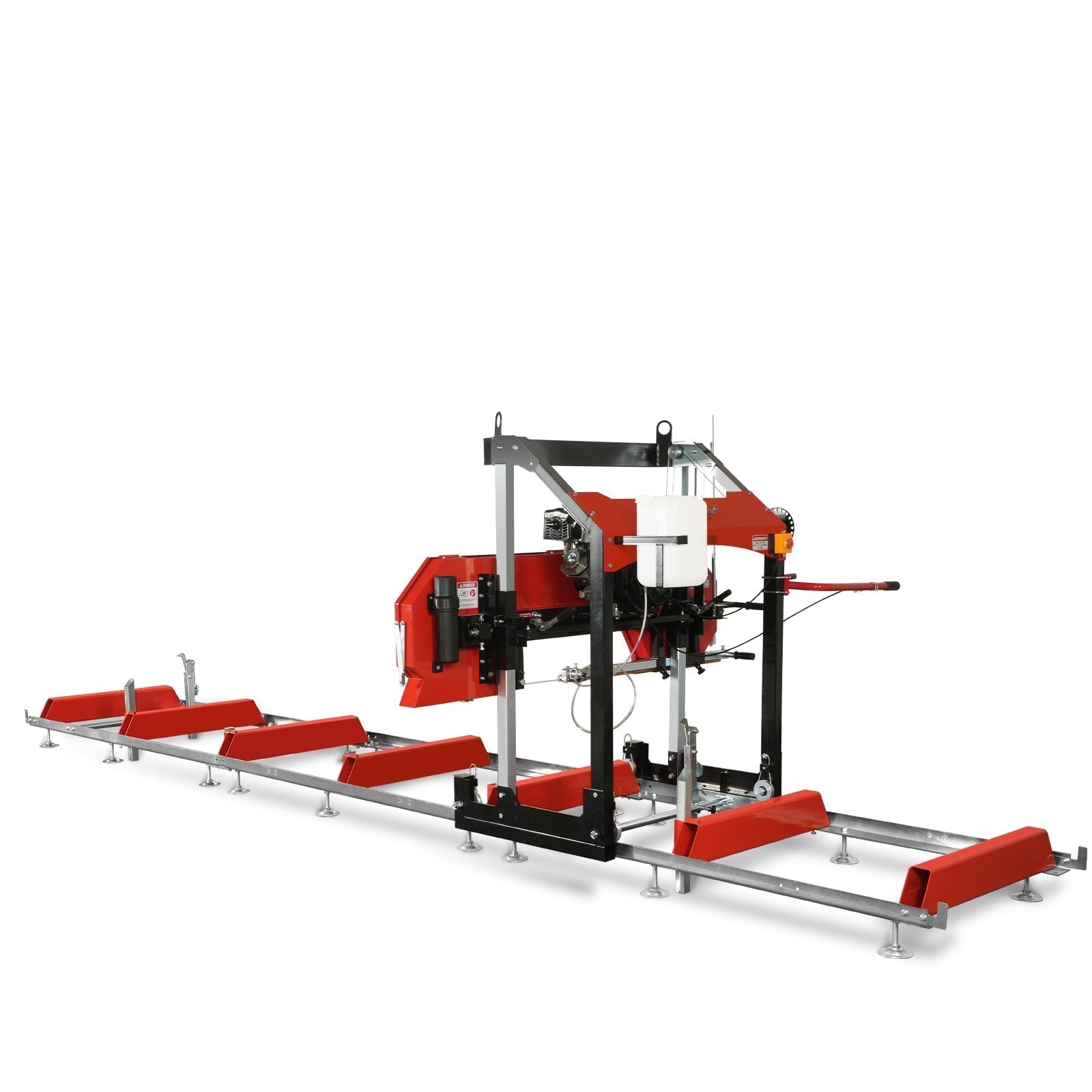

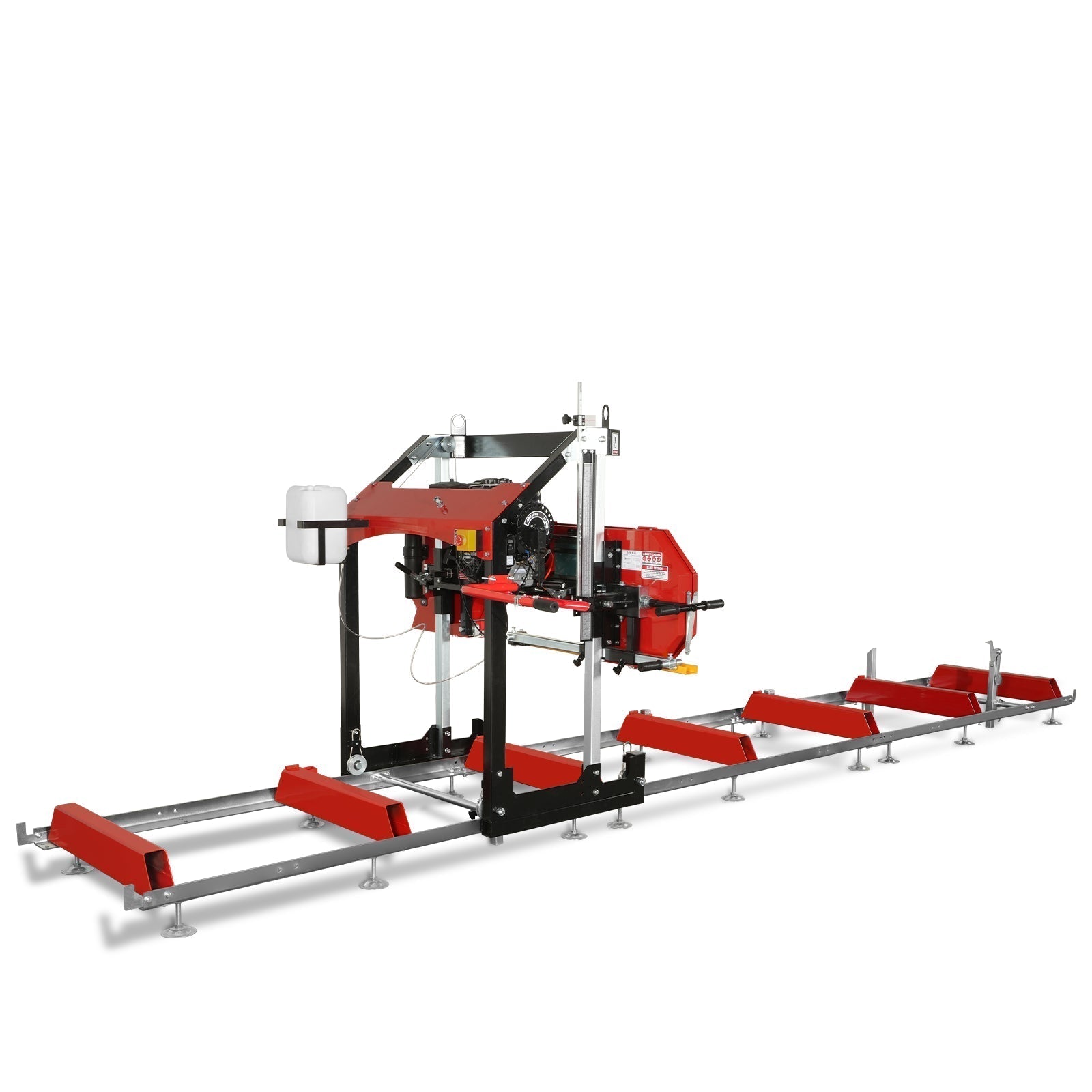

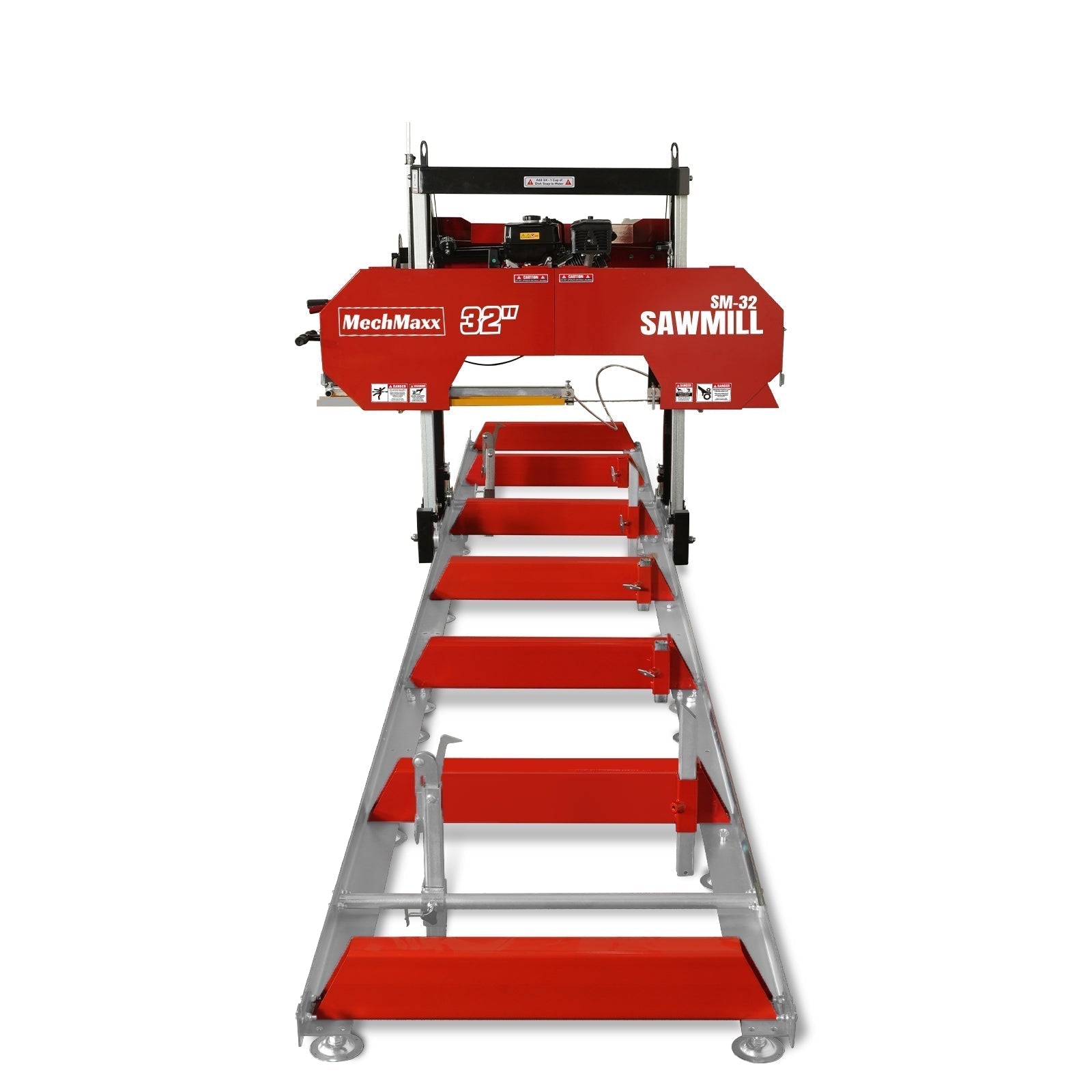

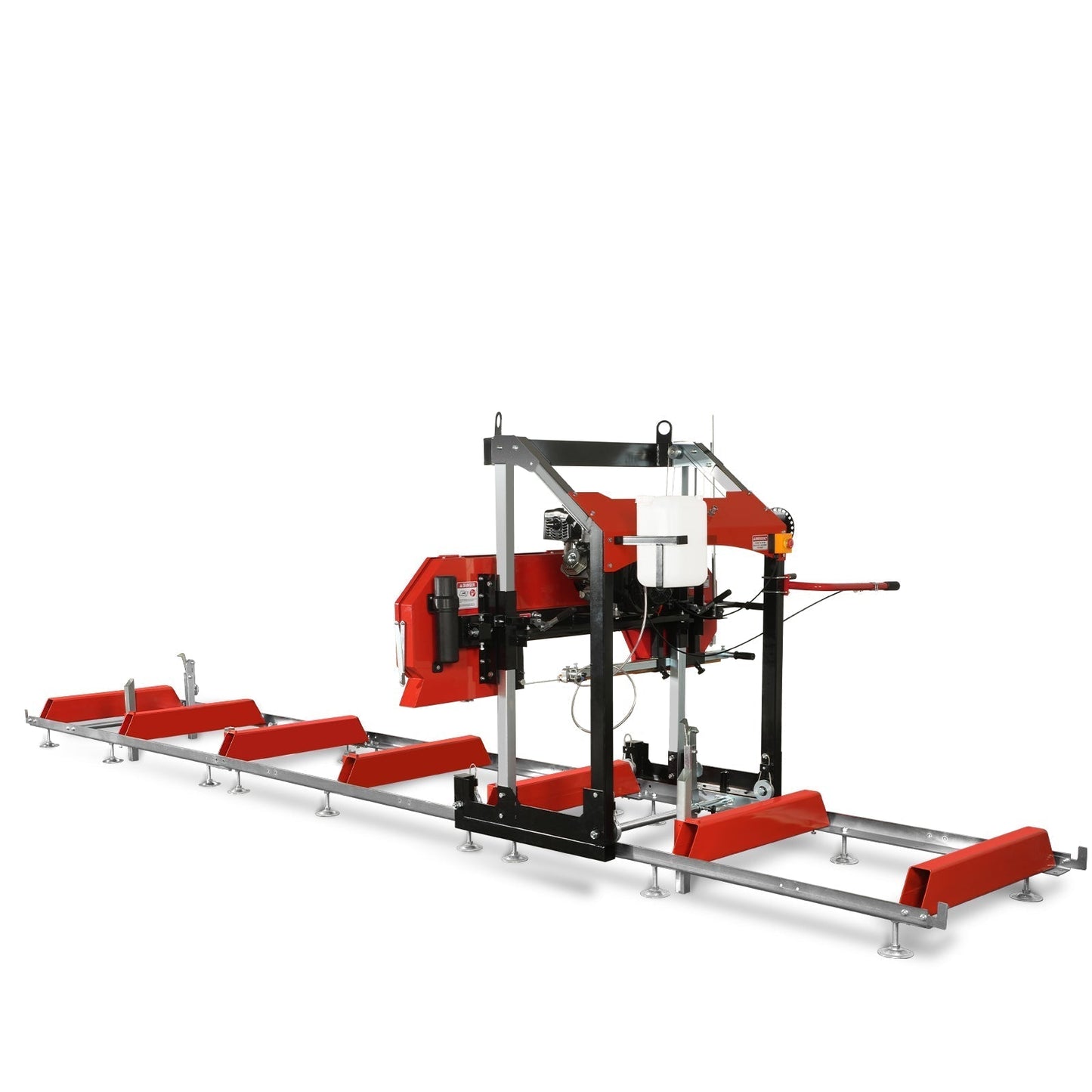

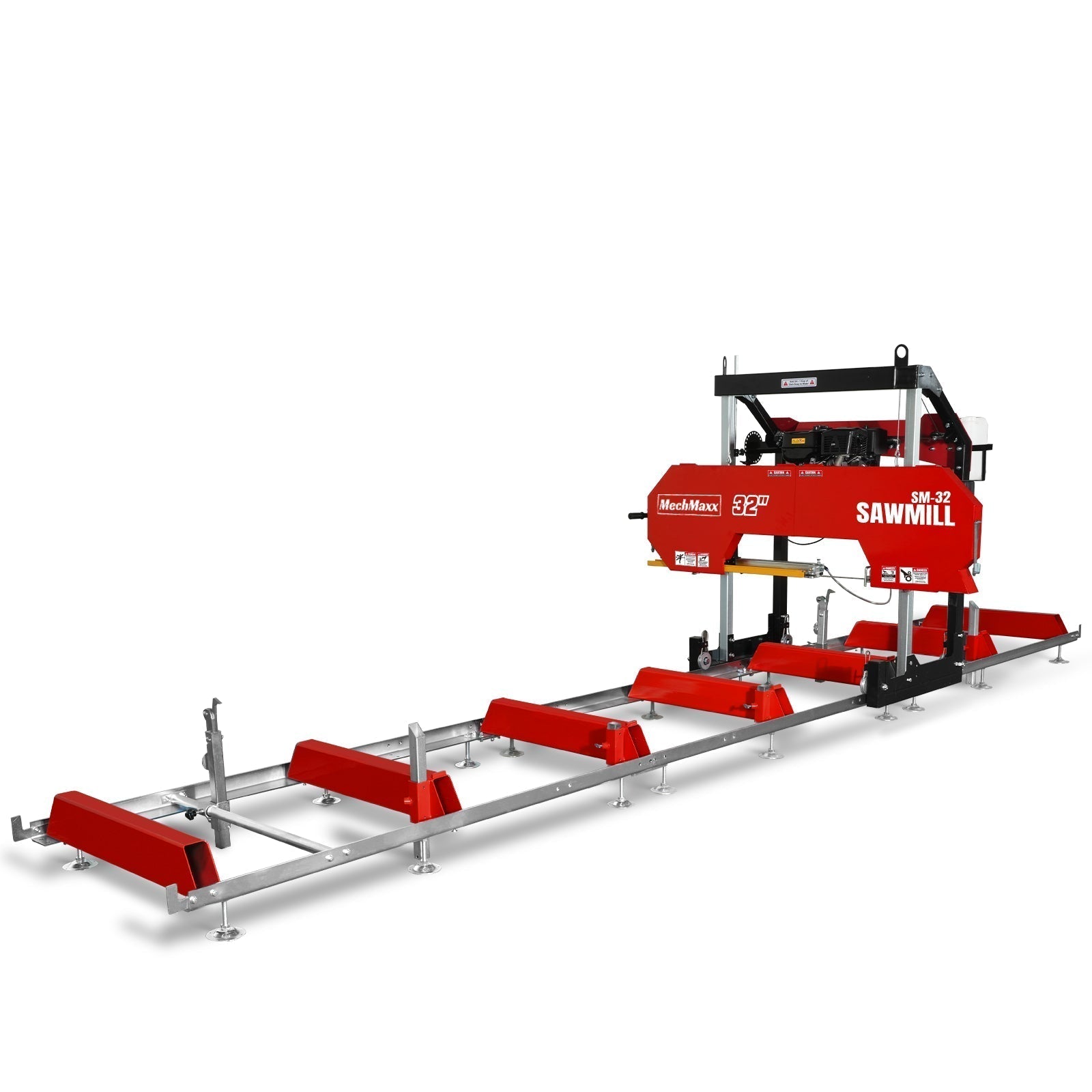

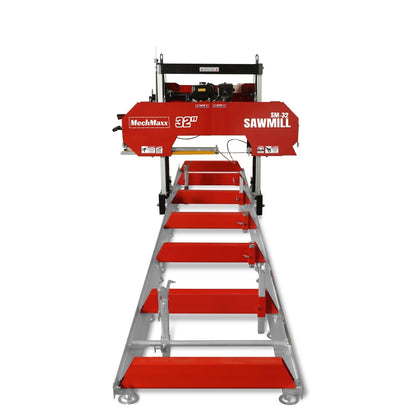

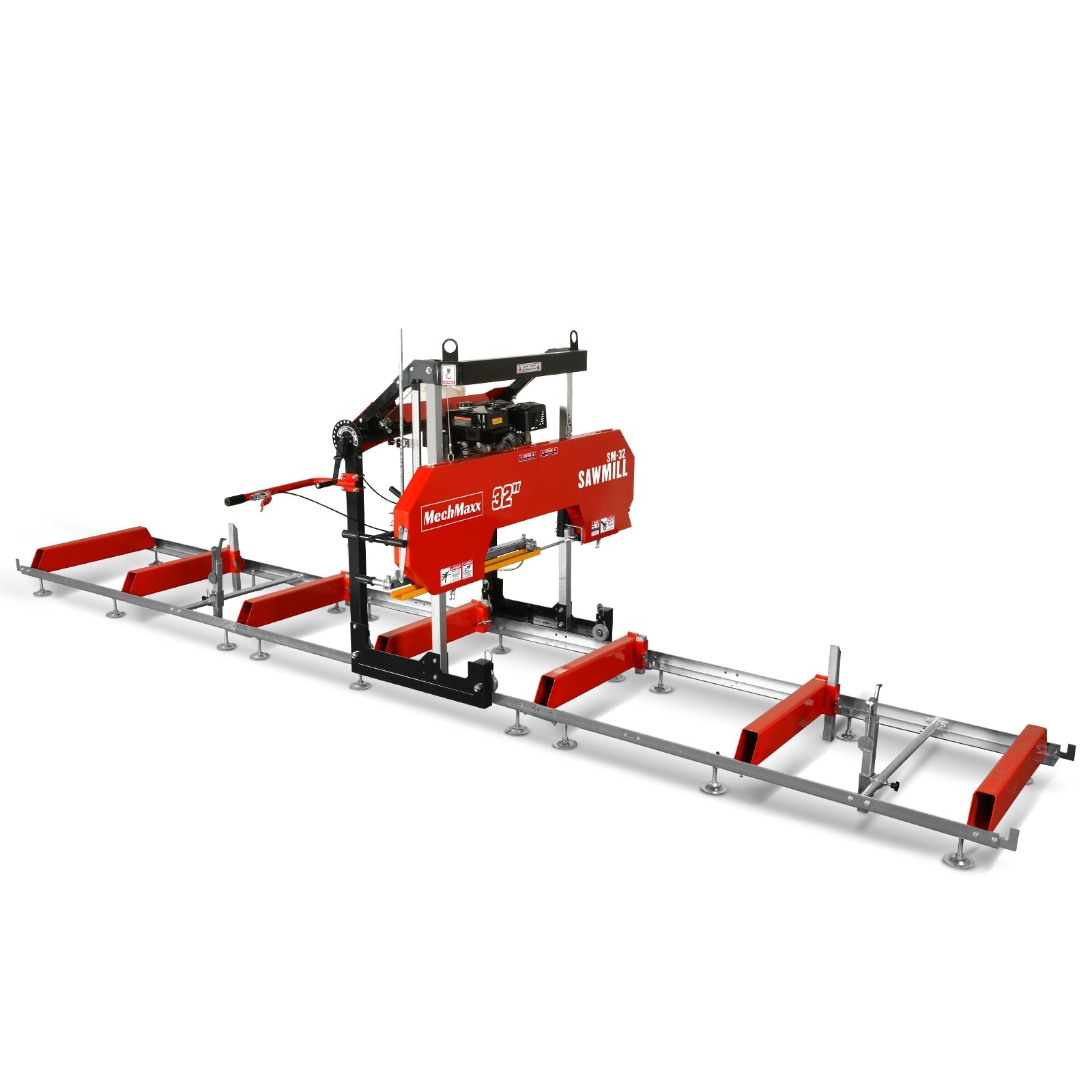

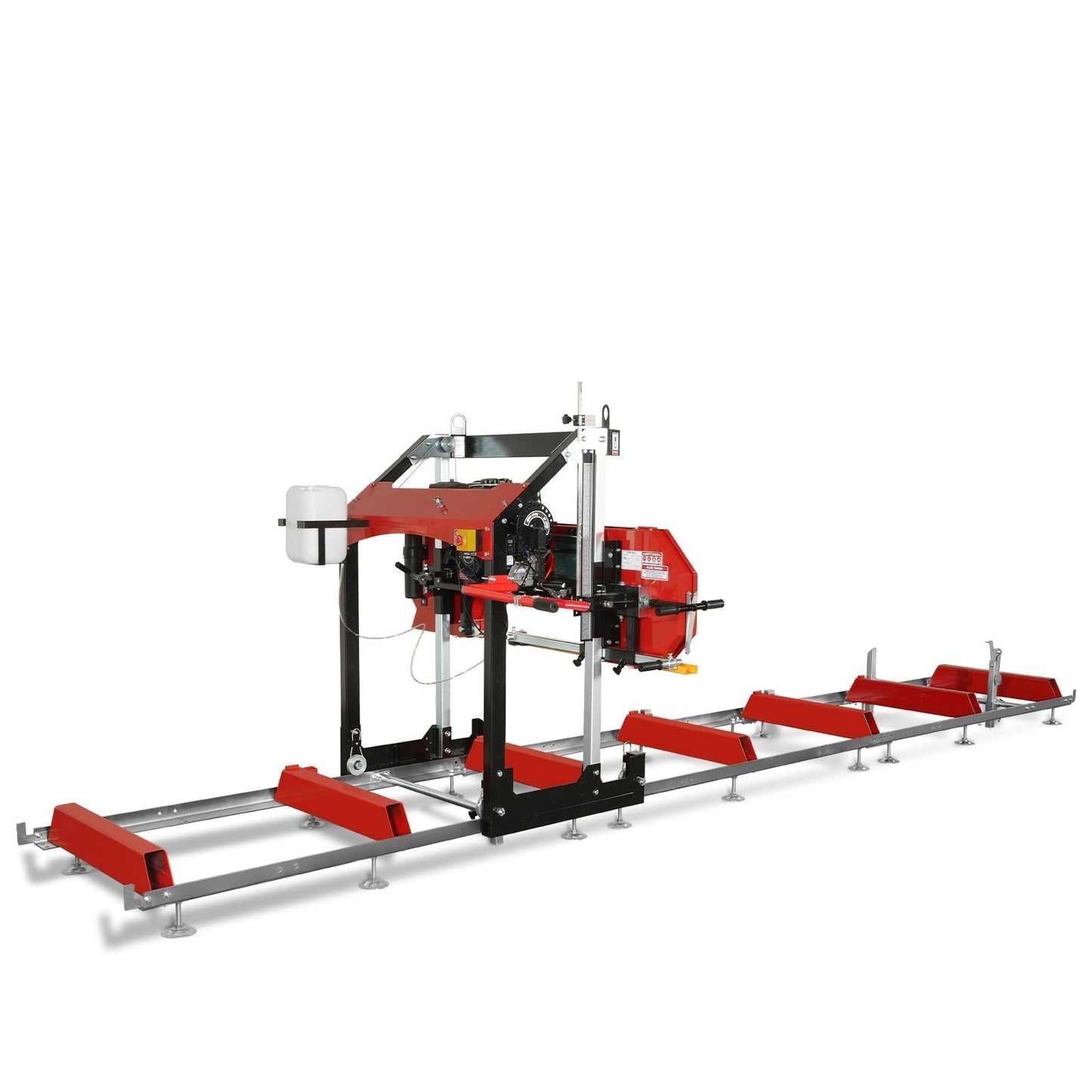

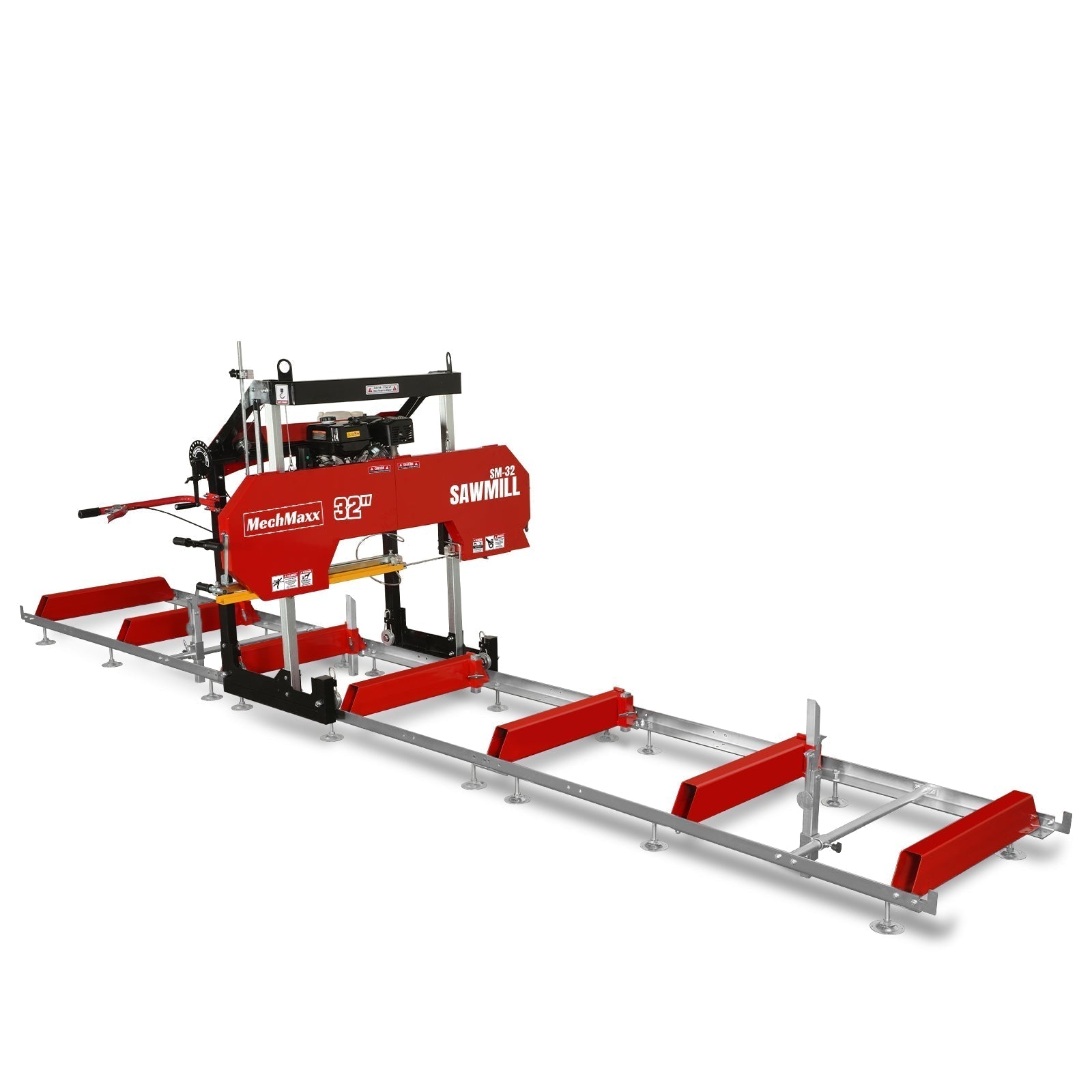

32" Portable Sawmill (5 x Blades Included), 420cc 15HP E-Start Gasoline Engine, 29" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM32

• Fully capable of cutting large 32" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
• It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.
• The gearbox is belt-driven via a  clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
• Can withstand heavy workloads for long hours, even in remote areas.

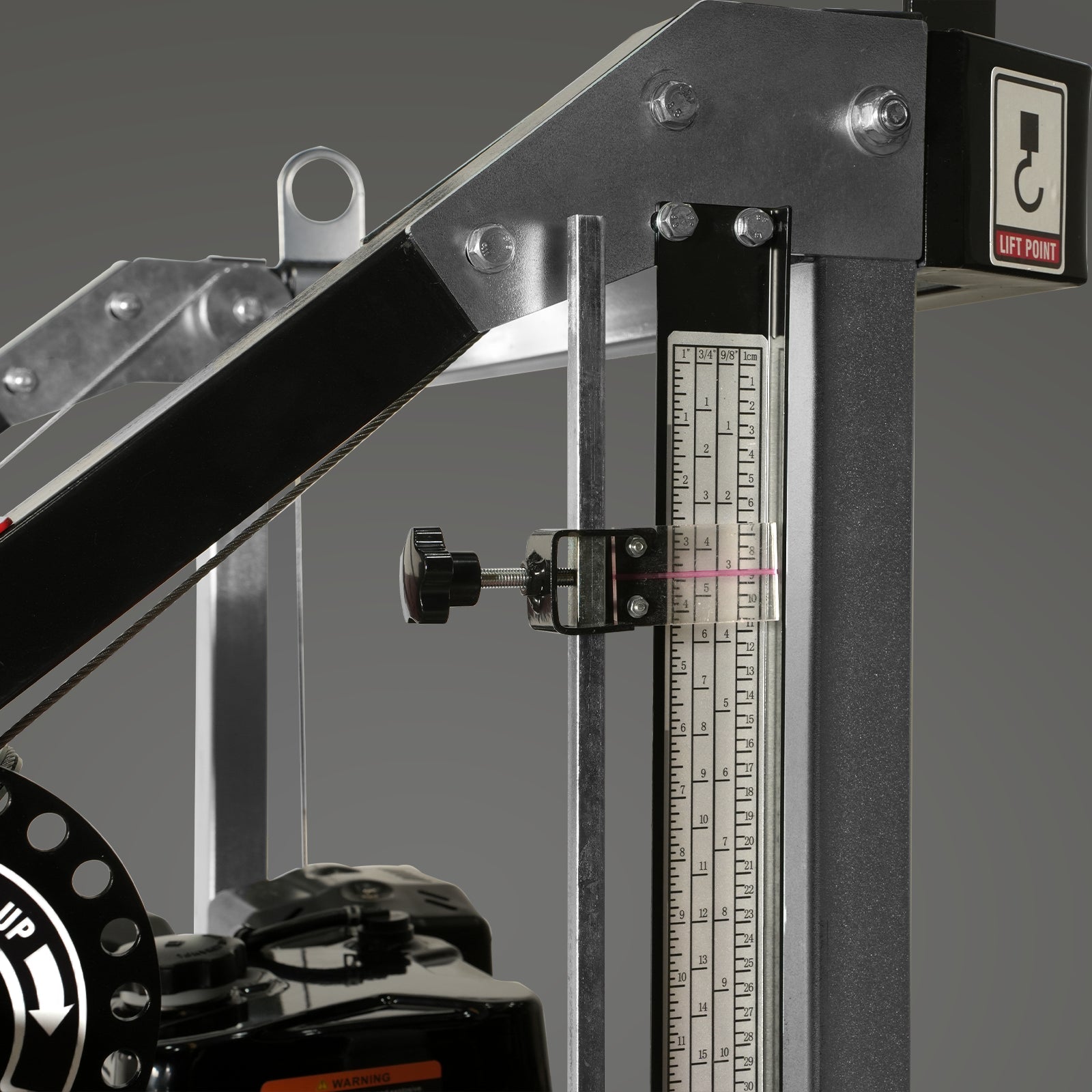

• The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.

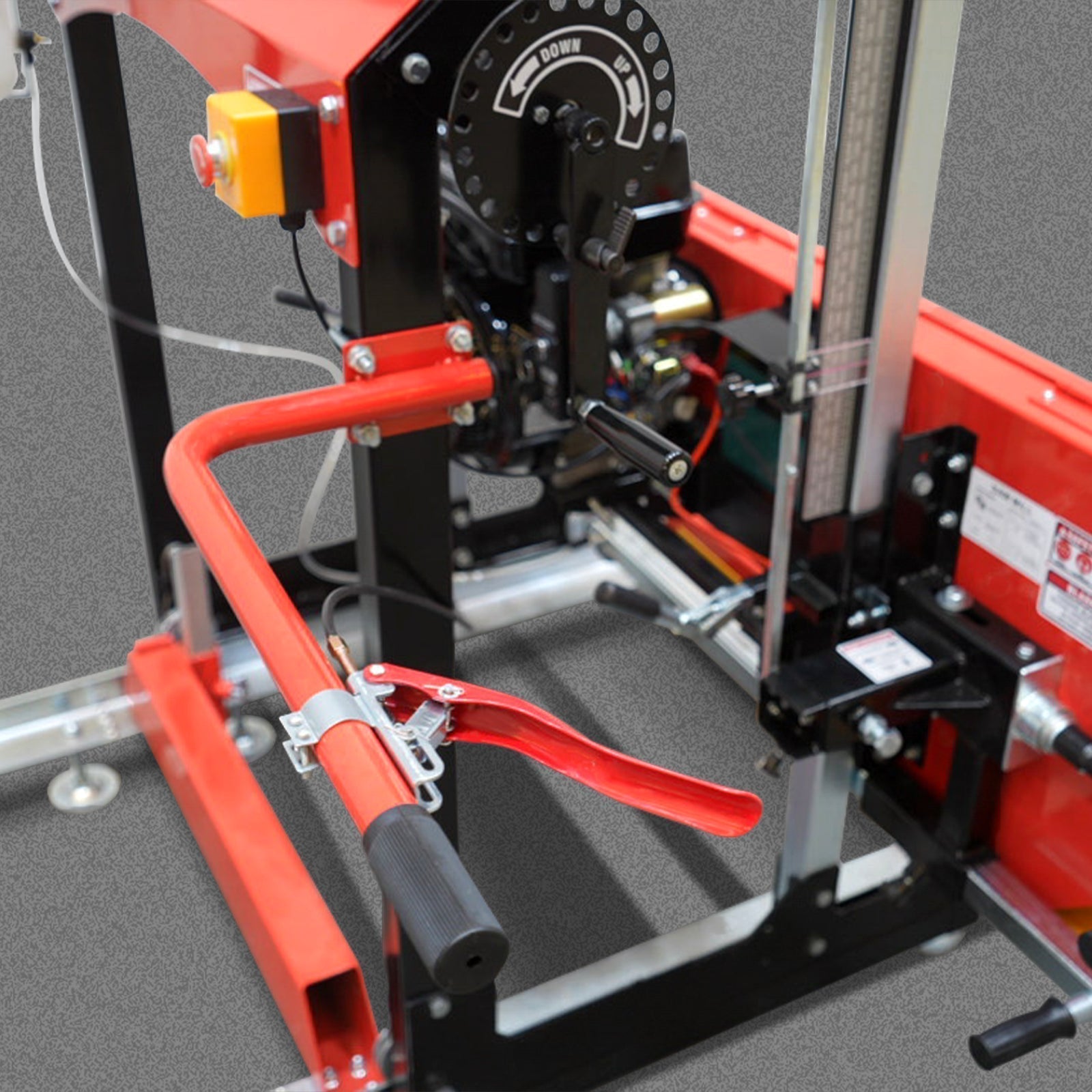

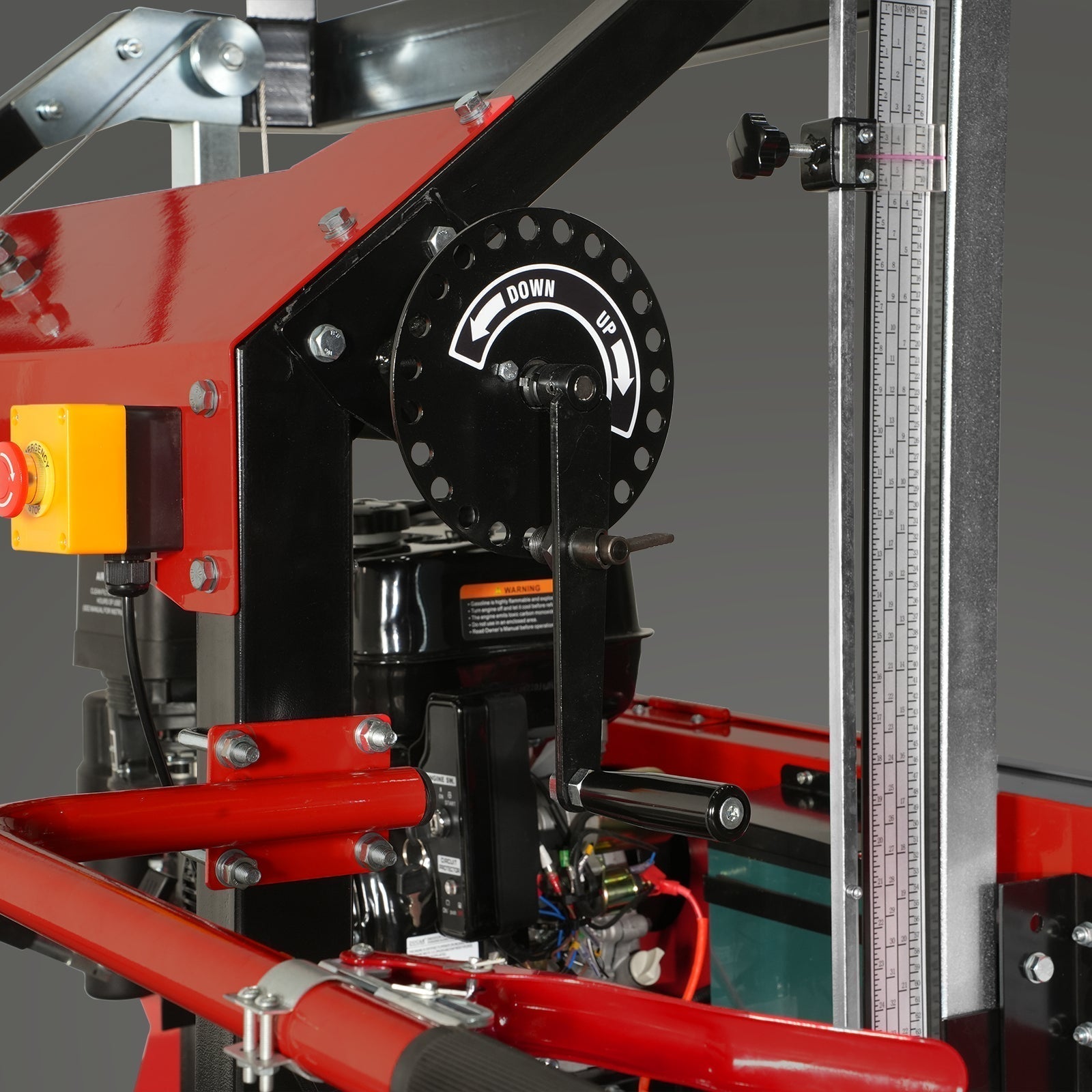

• You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

Product description

1.
2.
3.
4.
5.

1.
2.
3.
4.
5.

Engine	KOHLER CH440
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV
Engine Displacement	429 cc
Horsepower	14 HP
Start	E-Start
Log Diameter	32 in
Max Live Edge Width	26.5 in
Standard Cutting Length	16 ft 4 in

Max Board Thickness	7 in
Blade Engagement System	Centrifugal Clutch

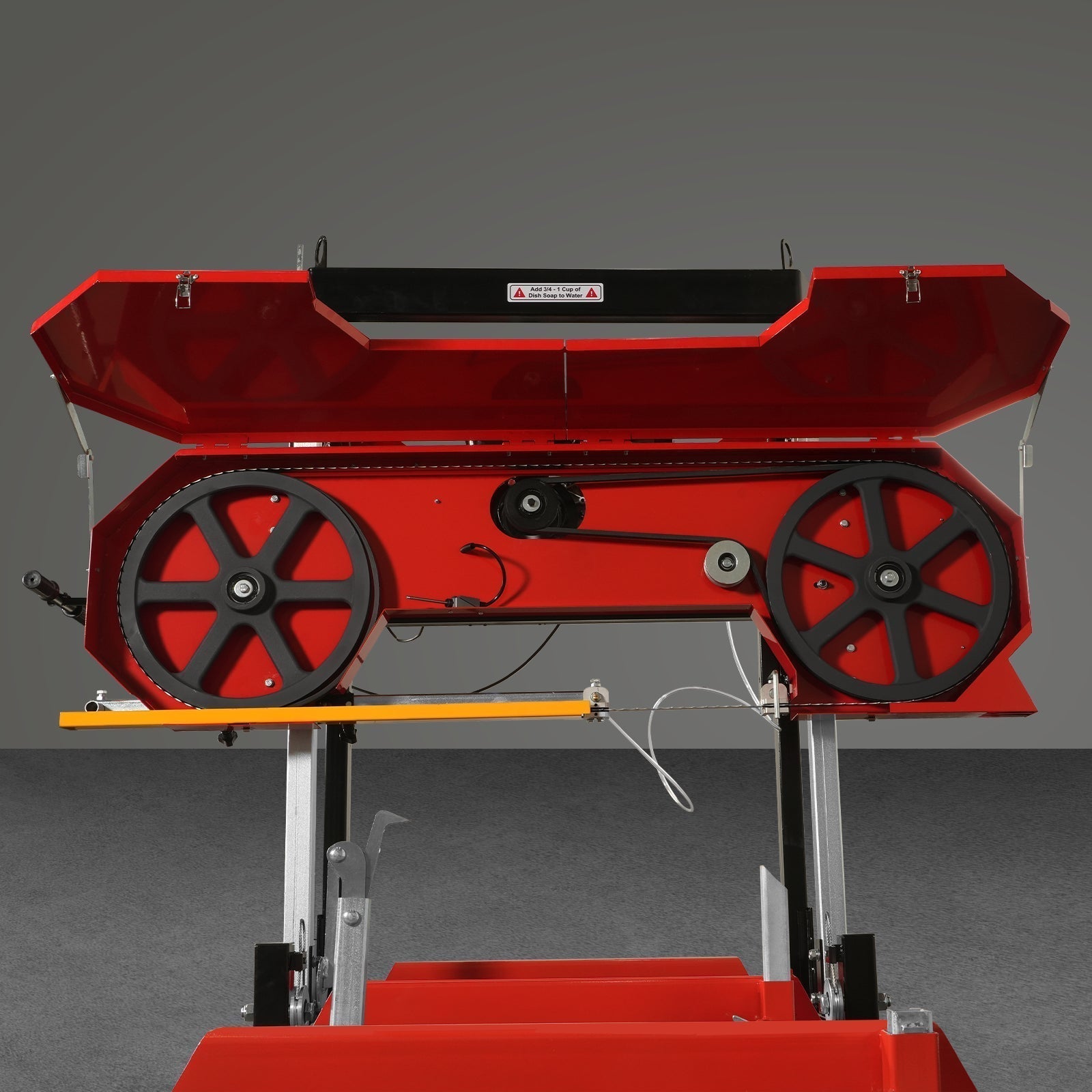

Cast Iron Bandwheel Diameter	19 in
Blade Wheel Engagement	Belt Drive
Blade Guide	By Roller

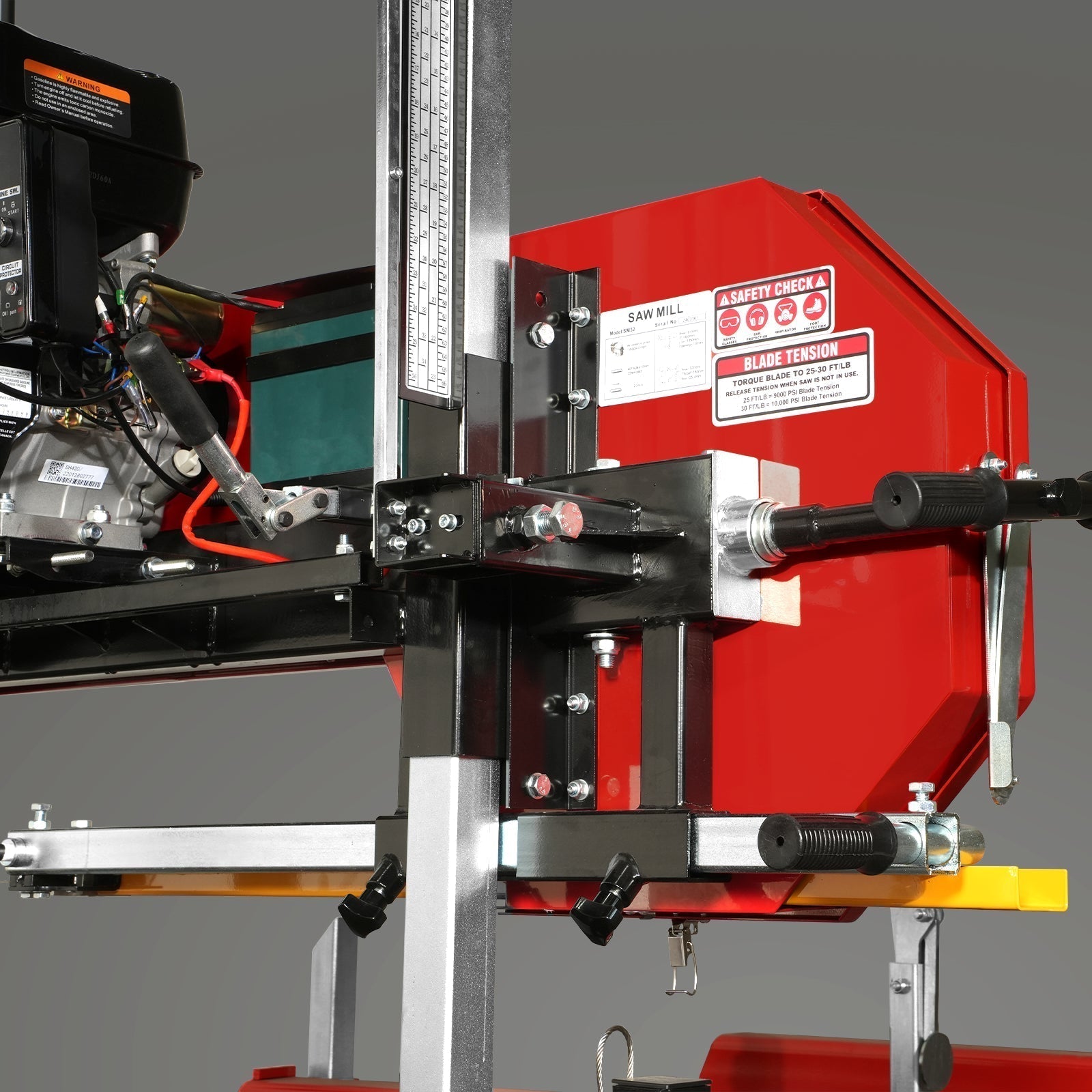

Blade Tension	By Adjustable Lever
Blade Size	158 x 1.3 in
Blade Pitch	7/8 in

Blade Lubrication	Water Lube - Manual Valve
Lubricant Tank Size	2.6 gal
Track Load-Bearing	5 ton
Track Width	3 ft 1 in
Track Length	20 ft
Track Extension Length	6 ft 6 in
Height (Max Head Position)	83 in
Levelling Feet	18

Log Rests	2 Long and 2 Short Rests
Log Clamps	2 x Quick Lock
Track Bunks	3 x 6 in
4 Post Head Design	Yes
Finish	Powder Coat Paint Galvanized Steel
Package Method	Wood
Packing Size	90 x 25 x 34 in
Weight (N.W./G.W.)	953/1047 lbs

Specifications:

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
